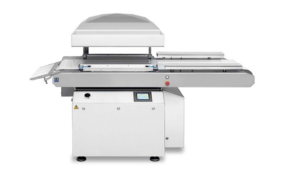

SUPERVAC GK402 BELT MACHINE
- All stainless-steel construction.
- Double-Biactive high pressure sealing.
- Spring loaded resistance wires.
- Sealing height 35 mm.
- 2 x 800 mm seal bars. Distance between the bars – 650 mm.
- Expansion cushion with snap-out frame. As alternative ropes to hold down bags.
- Quick slackening of conveyor belt.
- Soft start and stop of conveyor belt.
- Touch screen control unit with user prompts: Waterproof to IP65F standard.
- Machine running from right to left.
- Motor protection for one vacuum pump included.
- Cut-off perforation.
- Powered pouch piercing knives.
- Shrink bag equipment (Infeed rails with raised profiles to prevent shrink material from sticking & Pneumatic Bag guides for correct transfer into the chamber).
- Water cooled seal bars.
- Outfeed rollers 250 mm.
- Busch Rotary Vane Pump (integrated in machine), with gas ballast valve.300 m³/h Busch RD 0360
